SEW Cone Gear Motor for electroplating bath movement

new



Galvanisieren, Hot-AirGalvanisieren, Hot-Air

Specifications

Number: 180072

Type:

Dimensions:

SEW Cone Gear Motor for electroplating bath movement 88 Upm

N° R27 DRS71M4 BE1/HF/TF

L 49 cm , Mounting plate: 15 x 15,5 cm, Drive shaft 25,0 mm ∅



Technical data/power:

Rorational speed/power factor:

Gearing/torque:

Installation position/weight:

230/400 V, 50Hz, 0,55kW, 2,70/1,55 A

r/min 1360/87, Cos φ 0,72

i 15,63 / Nm 60

IM M5 / 17,072 kg

Equipment:

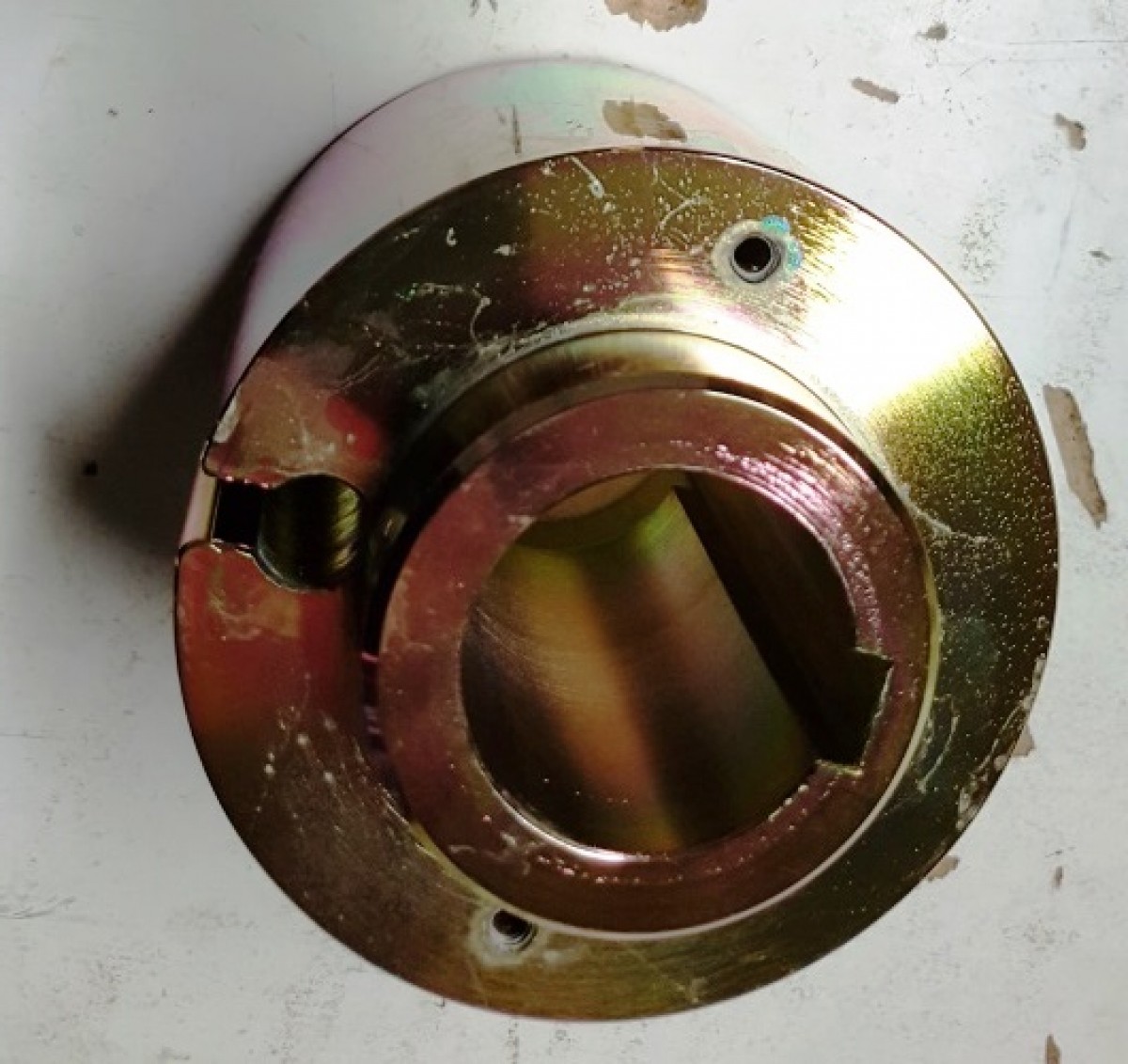

with lift roller D=100 x 100 d= 40

Funktion: O.K., Neu
Price: 300,- €
